Sanguine Paint I3

Process & Production

According to this recipe, antimony, lead oxide, and iron rust should be ground together and then used as a paint. In this case, the antimony may have been used to enhance the oxidation of iron compounds associated with rust. All the other recipes for sanguine in this source call for a vitreous binder, except this one. To determine the best interpretation of this recipe, two reconstructions were made: recipe I3 without glass (I3wo/g) and recipe I3 with glass (I3w/g).

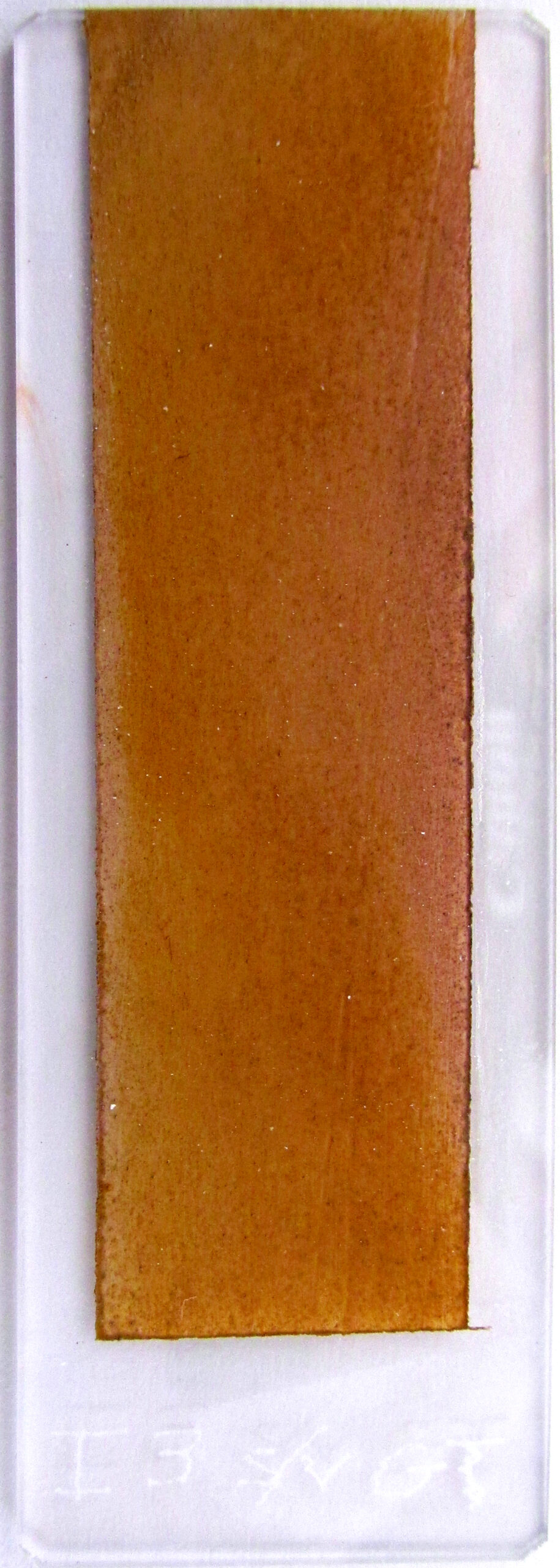

This recipe (I3wo/g) used antimony(III) oxide (Sb2O3), lead(II) oxide (PbO), and iron rust (Fe2O3·nH2O) in the proportions of 3:3:1 by wt. This mixture was then ground and painted on a glass with gum Arabic dissolved in distilled water. Finally the paint was fired at 620ºC for 30 minutes (ramp 3ºC/minute).

Find more at:
Â. Santos, M. Vilarigues (2019). Sanguine Paint: Production, Characterization, and Adhesion to the Glass Substrate. Studies in Conservation 64, 4, 221-239.
